Product Name |

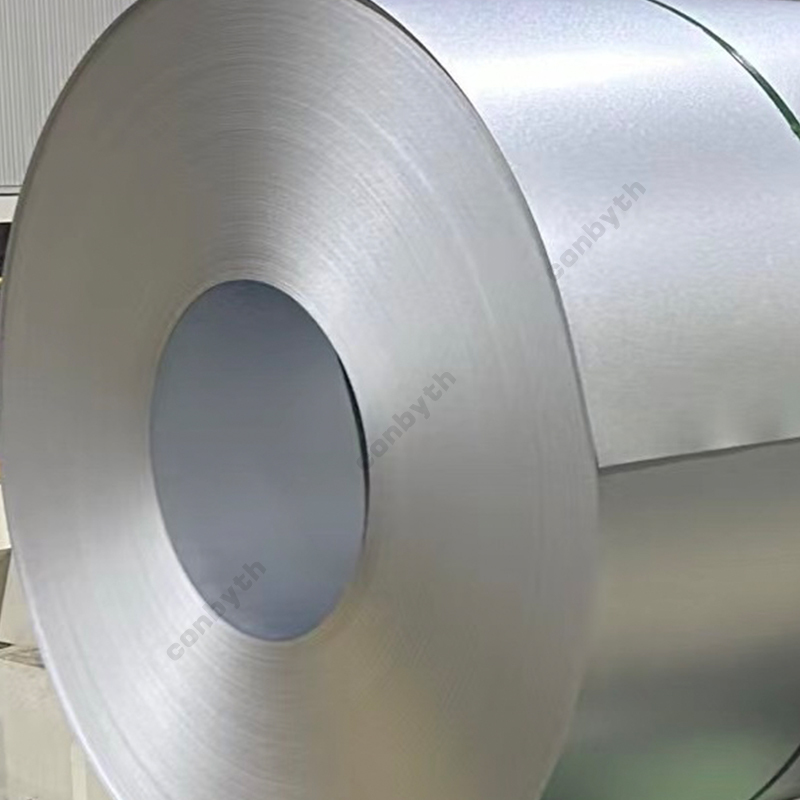

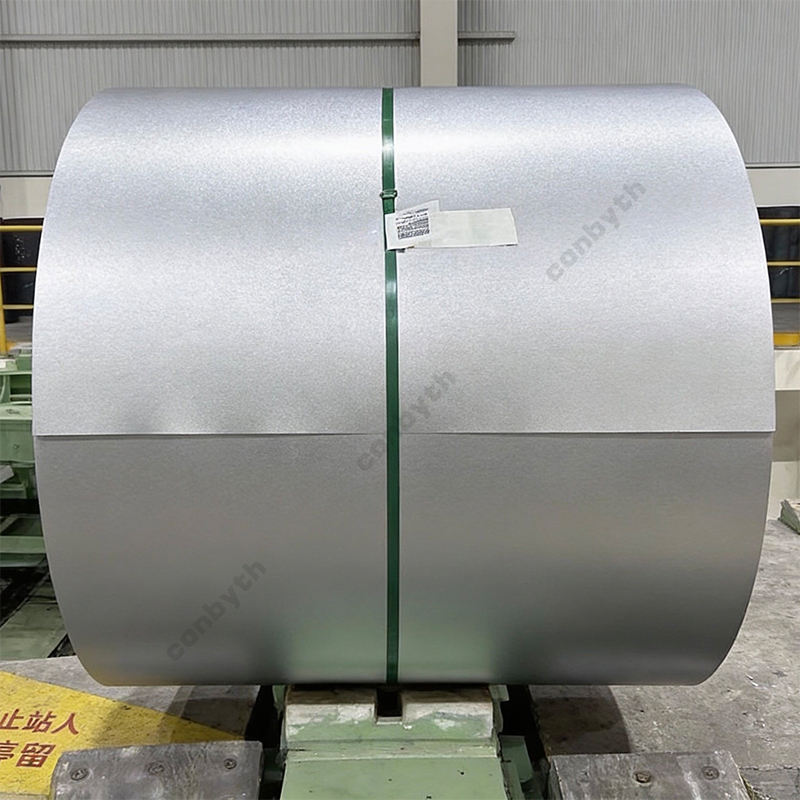

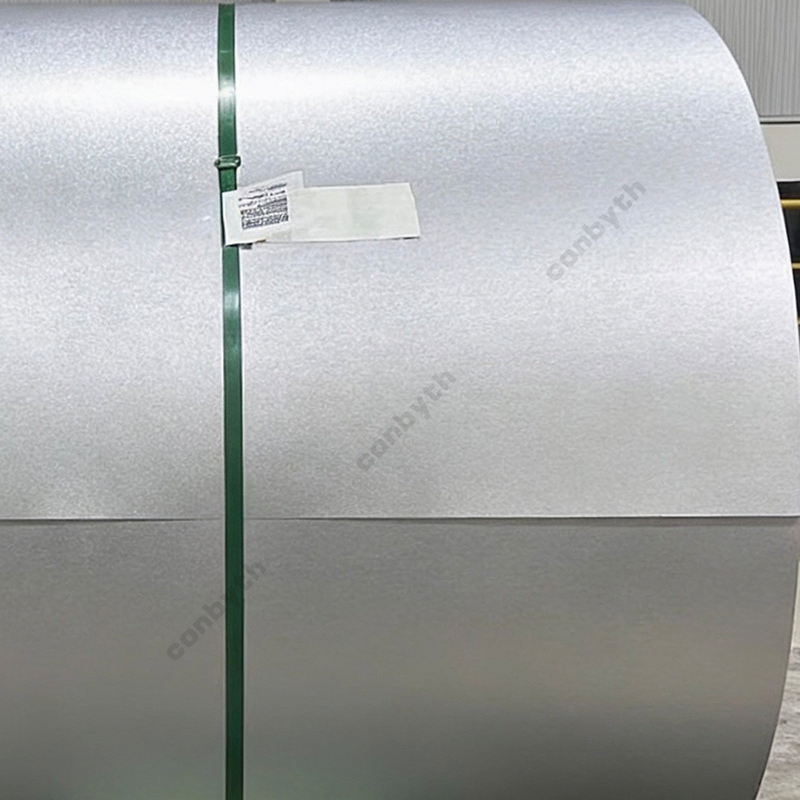

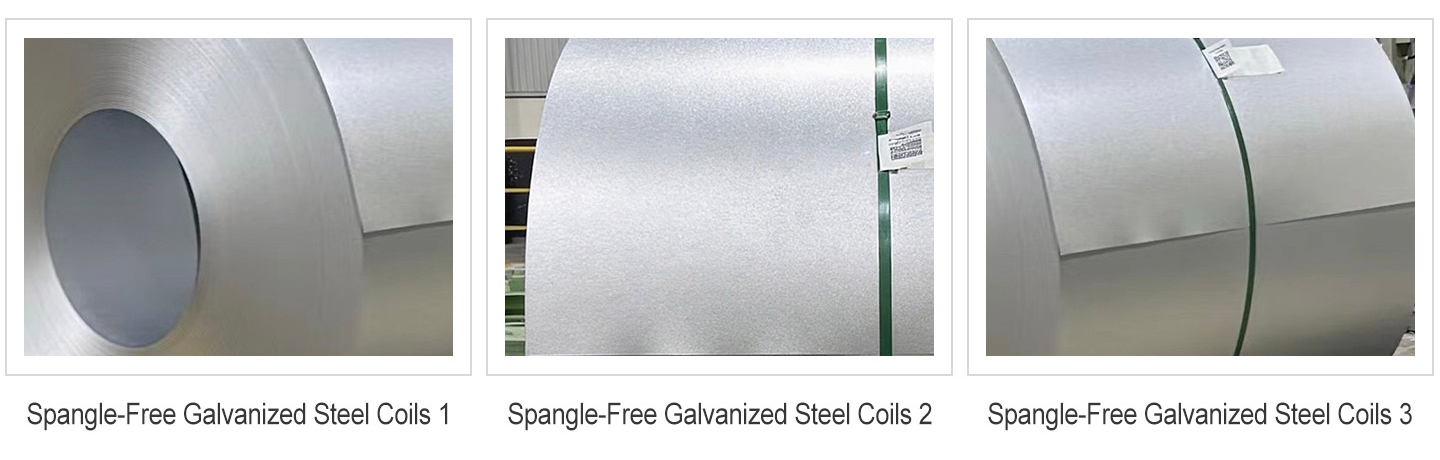

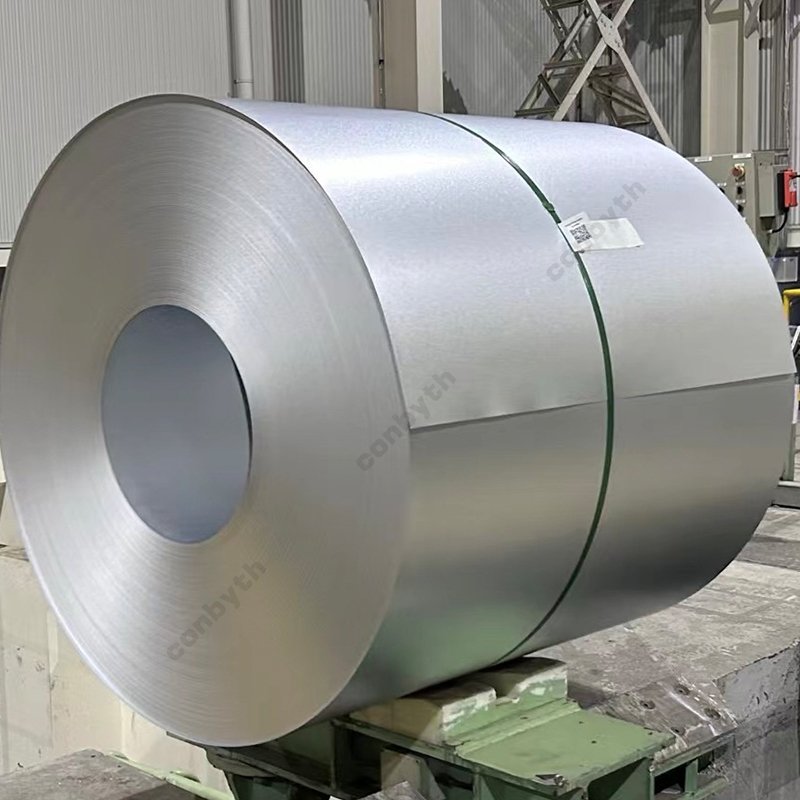

Spangle-Free Galvanized Steel Coils |
||
|
Standard |
ISO3575/GB/T2518-2019/ASTM A653/A653MJS G3302/Customer requirements |
||
|
Grade |
DX51D+Z,S280GD+Z,S350GD+Z,DX53D+Z,CSB, S350GD, S320GD+Z,SGCC |
||
|
Thickness |
0.11mm-2.0mm |
Width |
900mm-1250mm can be customized |
|
Coil ID |
508mm/610mm |
Zinc layer |
20g/㎡-200g/㎡ |
|
Tolerance |
Thickness:+/-0.03mm |
||
|
Width:+/-5mm |
|||
|
Total quantity: +/-10% |
|||
|
Tensile Strength |
>300MPa |
Yield Strength |
270-380MPa |
|
Quality test |
SGS testing , test zinc coating thickness/ T testing and others by every coil |
||
|
Inspection |
SGS, TUV, BV, ABS, LR etc. |
Certificate |
ISO 9001:2008, SGS |
|
Application |
containter plate, ship plate,refrigerators, kiosks, billboards, etc. |
||
|
Packing |
Standard export package .Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet. |
||
|
Payment Terms |
FOB 30%T/T,70% before shipment CIF 30% front money and 70% before shipment (the balance against B/L (copy)) Irrevocable 100% L/C at sight |
||
ApplianceGalvanized Steel Coils are coated with a protective zinc layer through hot-dip or electro-galvanizing processes, providing strong corrosion resistance and extended service life. Suitable for environments with high weather resistance requirements. Main applications include:
Building Structures: Light steel frames, ventilation ducts, cable trays.
Automotive Manufacturing: Anti-corrosion parts such as underbody panels, fuel tanks, bumpers.
Agricultural Facilities: Grain silos, greenhouse structures, livestock equipment.
Daily Hardware: Distribution boxes, instrument cabinets, appliance housings.
