Product Name |

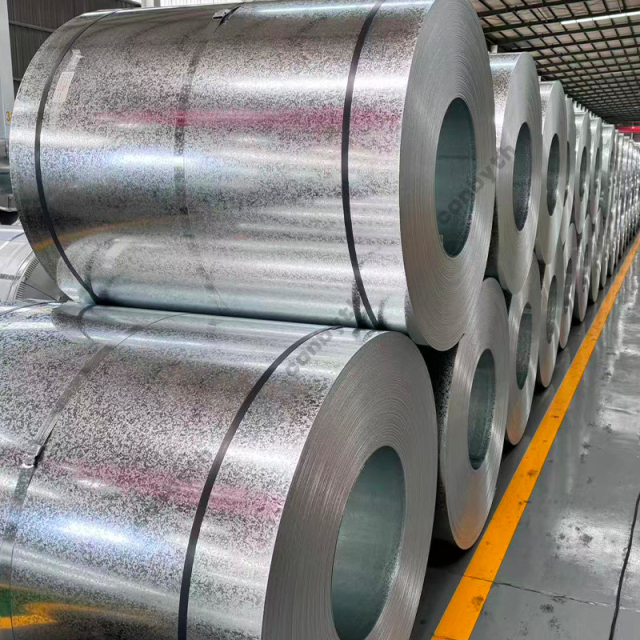

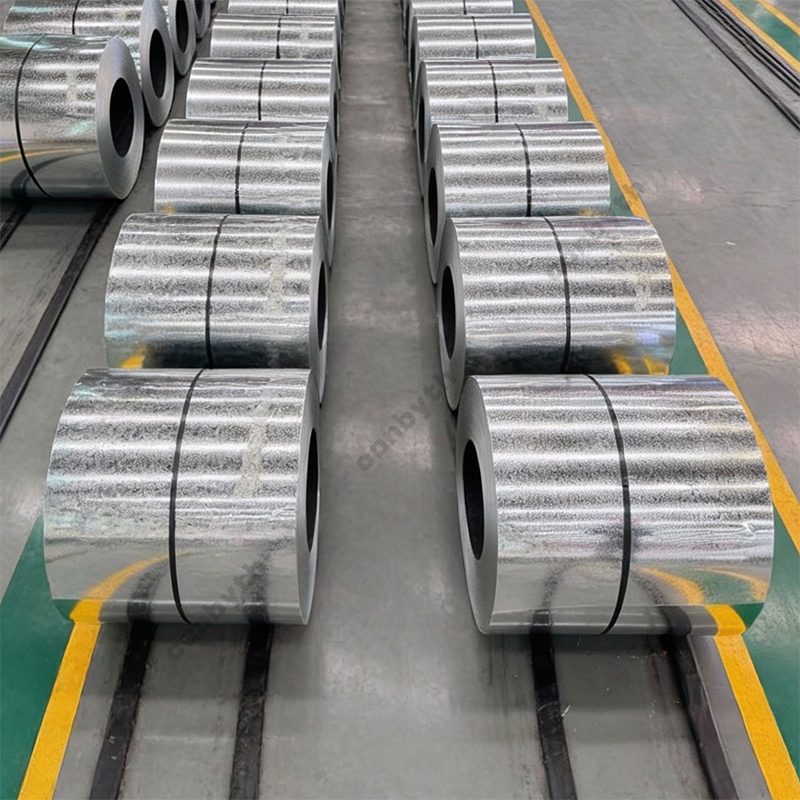

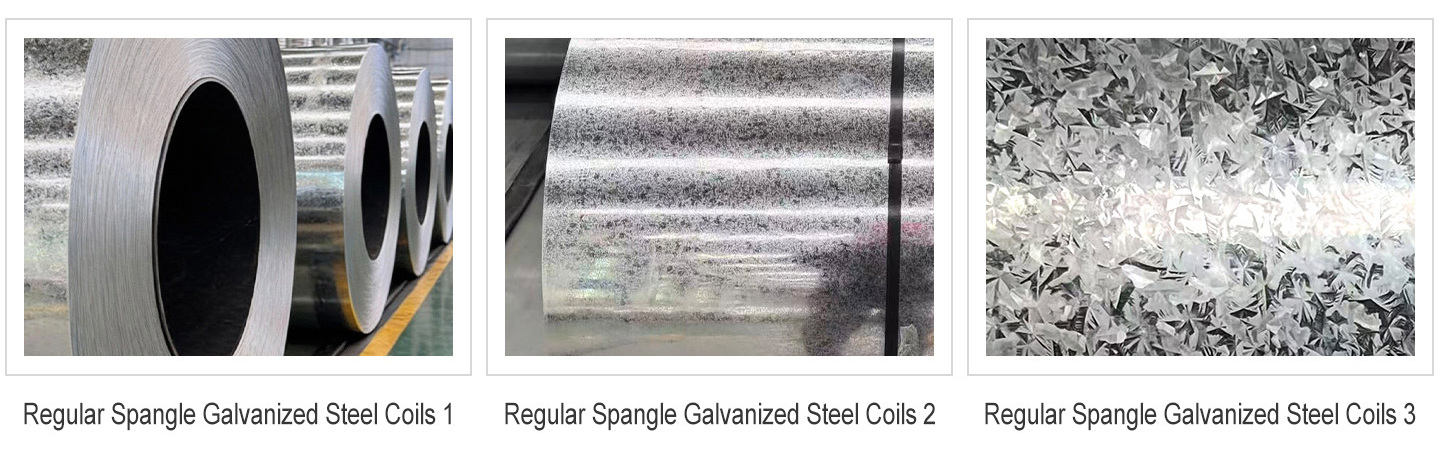

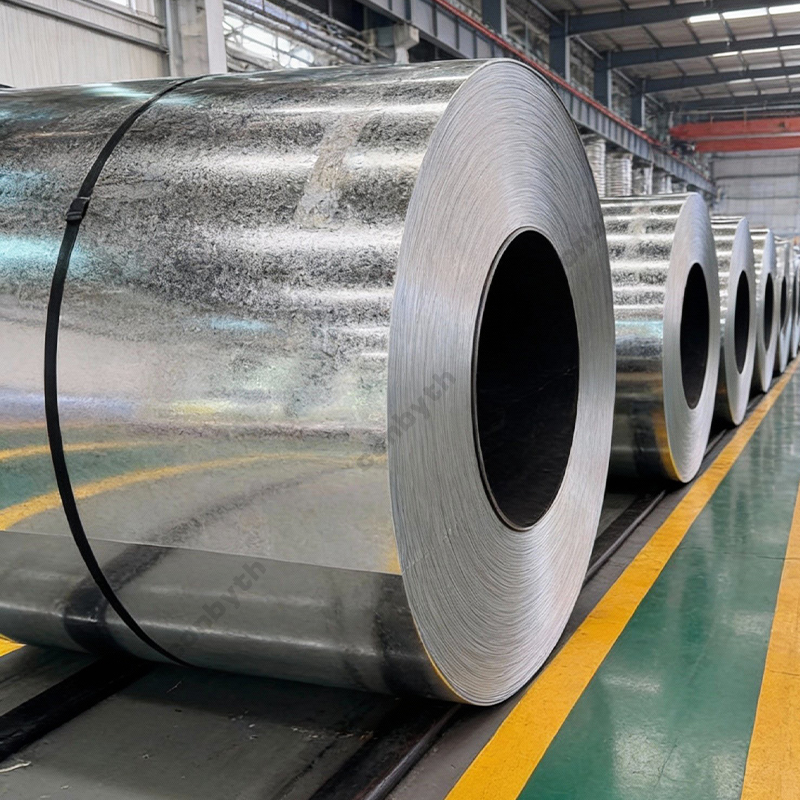

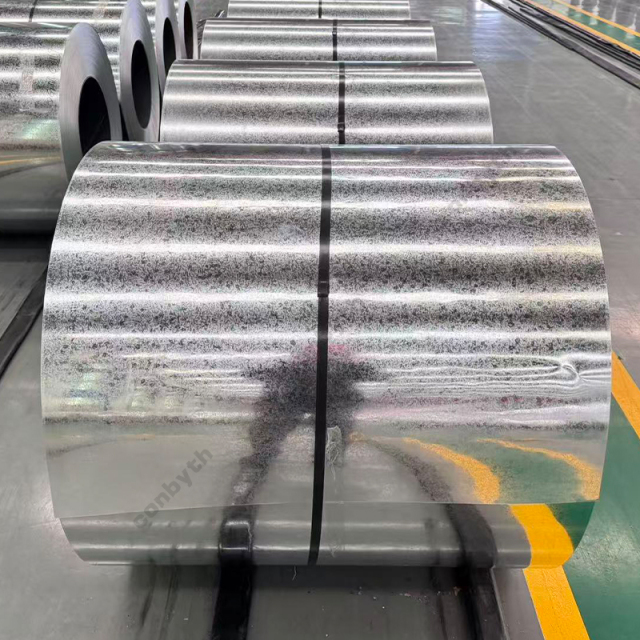

Regular Spangle Galvanized Steel Coils |
|||
|
Standard |
ISO3575/GB/T2518-2019/ASTM A653/A653MJS G3302/Customer requirements |
|||
|
Grade |
DX51D+Z,S280GD+Z,S350GD+Z,DX53D+Z,CSB, S350GD, S320GD+Z,SGCC |
|||
|
Thickness |
0.11mm-2.0mm |
Width |
900mm-1250mm can be customized |
|
|
Coil ID |
508mm/610mm |
Zinc layer |
20g/㎡-200g/㎡ |
|
|
Tolerance |
Thickness:+/-0.03mm |
|||
|
Width:+/-5mm |
||||
|
Total quantity: +/-10% |
||||
|
Tensile Strength |
>300MPa |
Yield Strength |
370-380MPa |
|
|
Quality test |
SGS testing / test zinc coating thickness / T testing and others by every coil |
|||
|
Inspection |
SGS, TUV, BV, ABS, LR etc. |
Certificate |
ISO9001 CE |
|
|
Application |
containter plate, ship plate,refrigerators, kiosks, billboards, etc. |
|||
|
Packing |
Standard export package .Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet. |
|||
|
Payment Terms |
FOB 30%T/T,70% before shipment CIF 30% front money and 70% before shipment (the balance against B/L (copy)) Irrevocable 100% L/C at sight |
|||
Appliance
Galvalume Steel Coils combines the oxidation resistance of aluminum and the cathodic protection of zinc. Its corrosion resistance is 2–6 times that of ordinary galvanized sheets, with good heat resistance and thermal reflectivity. Primary applications:
Industrial Construction: Roofing and siding for chemical plants, power stations, and other corrosive environments.
High-Temperature Applications: Oven exteriors, boiler casings, chimney pipes.
Environmental Equipment: Exhaust gas treatment systems, desulfurization units.
Civilian Facilities: Corrugated roofing sheets, fire-resistant rolling doors.
