Item |
Corrugated Sheet |
||||||
|
Thickness |
0.08mm-0.50mm |
Width |
910mm-630mm |
||||
|
Length |
1800mm-3800mm |
Substrate selection |
Galvanized sheet / Color coated sheet |
||||
|
Zinc layer |
15g/㎡-180g/㎡ |
Paint film |
Top: 10-28um Back: 4-22um |
||||
|
Color |
Ral or Pantone Colors, also can be customized according to sample |
||||||
|
Tolerance |
Thickness:+/-0.03mm |
||||||
|
Width:+/-5mm |
|||||||
|
Total quantity: +/-10% |
|||||||
|
Quality test |
SGS testing / test zinc coating thickness / PE coating thickness / T testing and others by every coil |
||||||
|
Inspection |
SGS, TUV, BV, ABS, LR etc. |
Certificate |
ISO 9001:2008, SGS |
||||
|
Application |
Building industry,structural use, roofing, commercial use,household appliance, industrial facilities, office buildings |
||||||
|
Payment Terms |
FOB 30%T/T,70% before shipment CIF 30% front money and 70% before shipment (the balance against B/L (copy)) Irrevocable 100% L/C at sight |
||||||

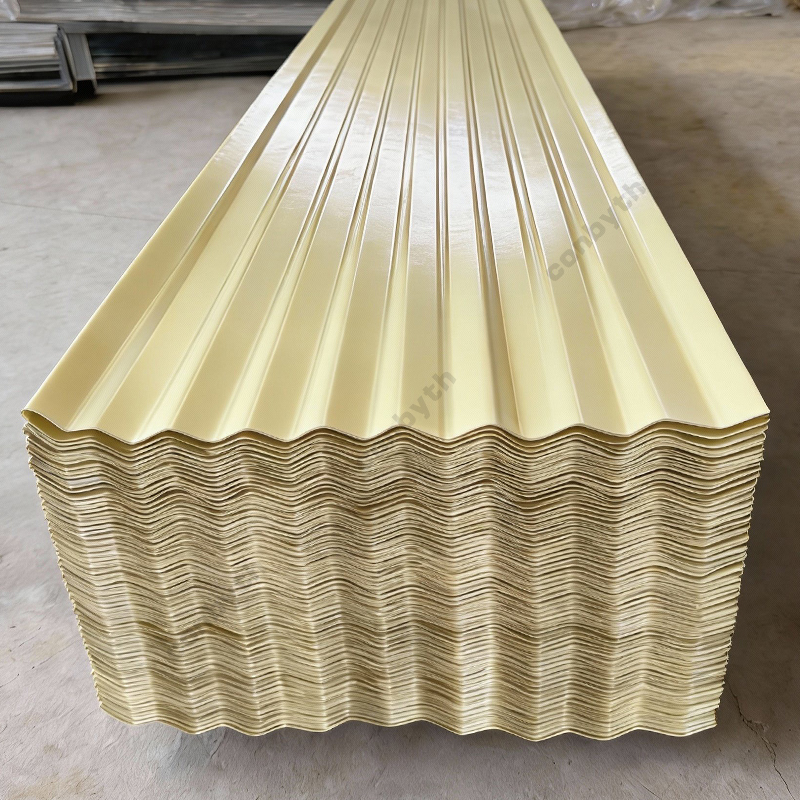

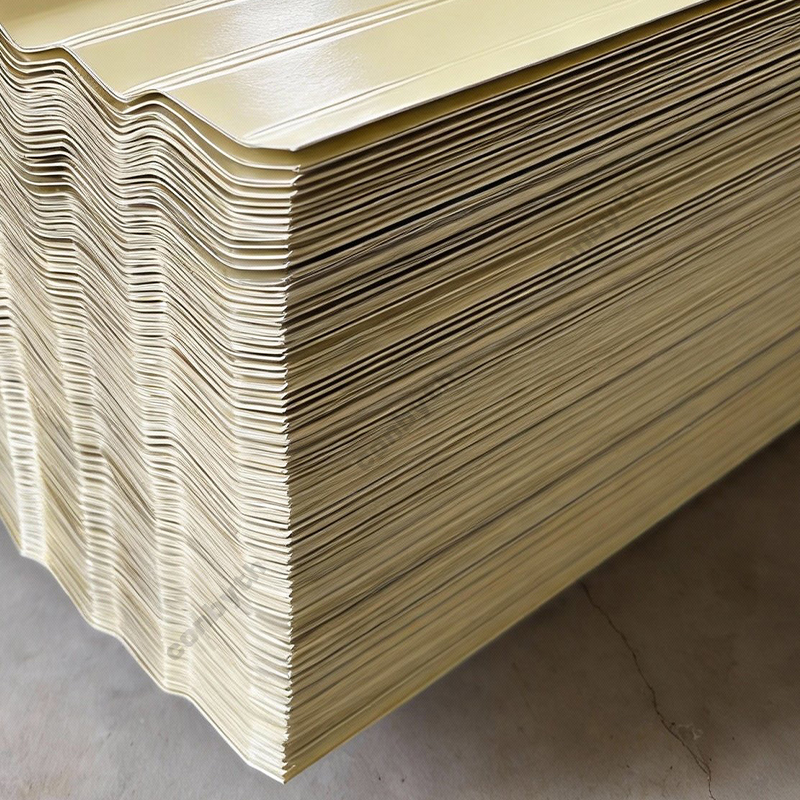

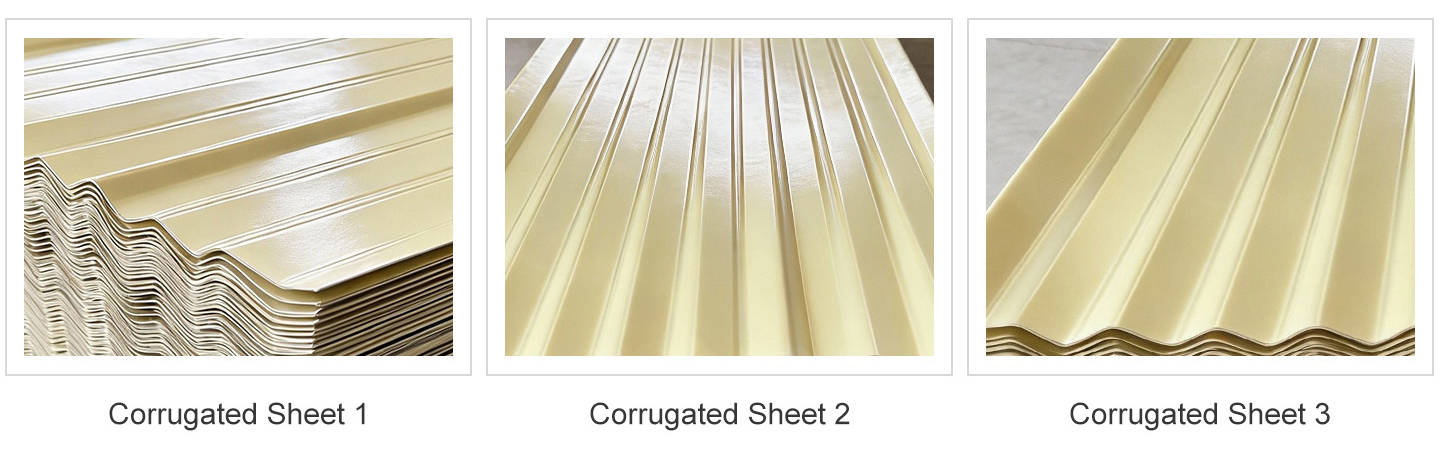

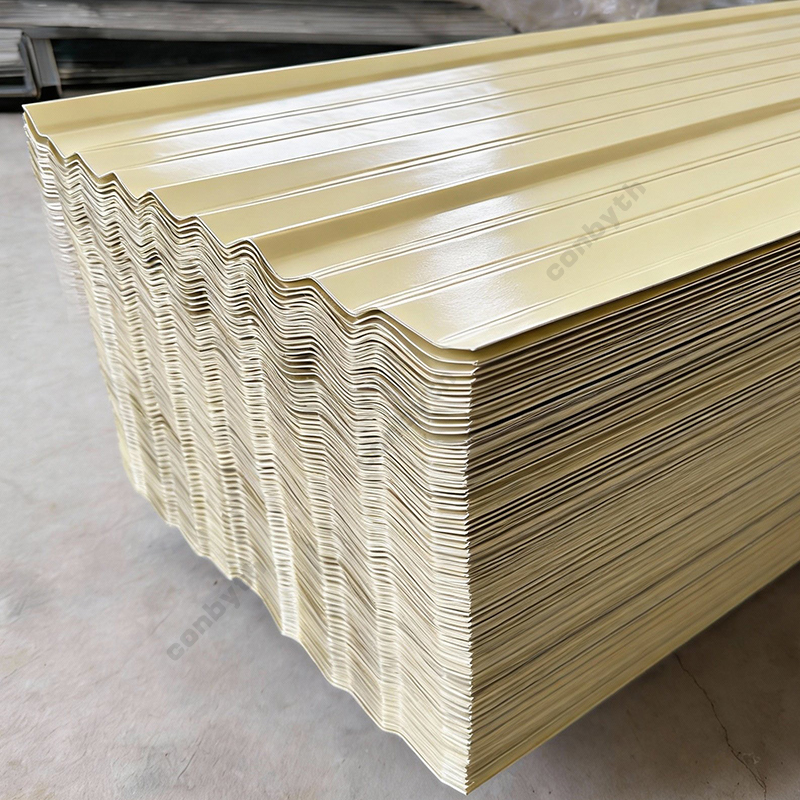

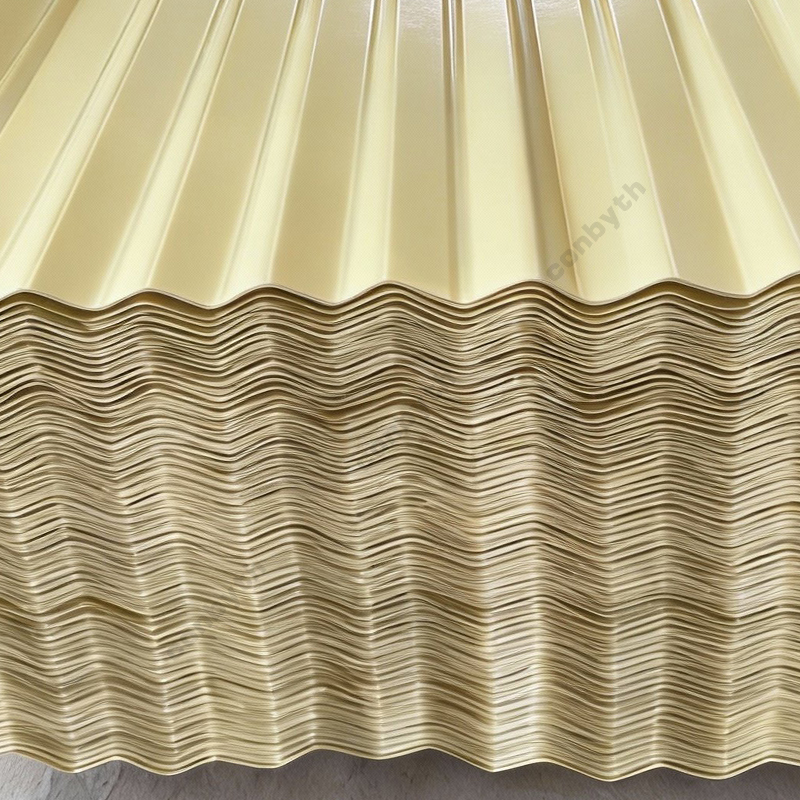

Product Details
ApplianceRoofing are profiled by roll-forming color coated steel coils into wave-like shapes. They are lightweight, high-strength, easy to install, and offer excellent waterproofing and decorative appeal. Typical uses include:
Industrial & Civil Buildings: Roofing for workshops, warehouses, farm markets, prefabricated houses.
Public Facilities: Station canopies, parking lot shelters, toll booth roofs.
Temporary Structures: Site offices, exhibition tents, emergency shelters.
Insulated Roofing: Used with insulation layers for energy-efficient buildings.
